Bathology Atmospheric 410
In-Shower Ventilation Exhaust Fan System
Transform your steam room or shower with the only ventilation system engineered specially for in-shower applications, by Bathology!
Unlike any normal exhaust fan, the Atmospheric 410 Steam and Shower Ventilation Fan System is the builder's choice for controlling humidity and temperature in any wet environment.
At the touch of the waterproof button, this innovative in-shower ventilation system balances the ambient temperature in the bathing environment and then removes vapor, helping to dry out the shower for a worry-free bathing experience.
Precision crafted and assembled from high-quality components, this cutting-edge Bathology ventilation fan system unites a switch, fan, damper, and grille for unmatched moisture control.
Fan Switch
Intuitive, low-voltage, and flush-mounted, this in-shower, fan switch features a soft-touch keypad with on/off, incrementally adjustable speed controls, and indicator lights. The lowest speed setting will remove excessive ceiling heat or allow for ideal thick, rich steam shower fog while the highest setting will clear steam and vapor in seconds. The integrated 20-minute automatic shutoff feature will allow for convenient set-it and forget-it, shower-drying results.
Waterproof Wall or Roof Fan
Essential to any steam and shower ventilation system is an exterior-mounted, waterproof fan. Unlike typical bath fans that push moisture-laden air, Atmospheric 410 wall and roof fans draw the air completely outside the home. U.L. listed for wet location use, these durable and efficient fans provide for ideal whisper quiet operation.
Motorized Damper
When keeping heat and moisture contained, only a motorized and tensioned damper with a waterproof pressure seal gasket will do. Once powered on, the Atmospheric 410 damper will open allowing heat and moisture to be drawn out of the environment. When turned off, or after 20 minutes, the damper securely closes and creates a seal to ensure no exchange occurs between in-home and outdoor air. The insulated duct work beyond the damper is left open to the outside air, allowing evaporation of any residual moisture.
Stainless Steel Grille
Bold and striking by design, the super quiet Atmospheric 410 boasts a grille befitting today's super shower. Concentrically fastened brushed stainless steel circles are separated by precise space for both ideal airflow and stylish design. Unlike traditional fan grilles, this element is impervious to moisture and heat.
Atmospheric 410 is an essential component of a luxury shower. Its in-shower keypad allows for convenient control of the bathing atmosphere while the motorized damper, insulated duct and exterior-mounted fan provide top-quality moisture evacuation. Nearly silent, this one of a kind wet environment fan system is sure to please the most discriminating bather.
- Whisper quiet performance
- High CFM/Watt efficiency
- Superior performance @ Higher Static
- Stainless Steel decorative grille, 6" diameter
- Motorized backdraft damper
- Variable speed control
- In-shower keypad
- 20-Minute auto shutoff
- Energy Star Rated
- CSA Listed
- UL Listed for Wet Locations
- Exterior wall fan, 124 CFM (option)

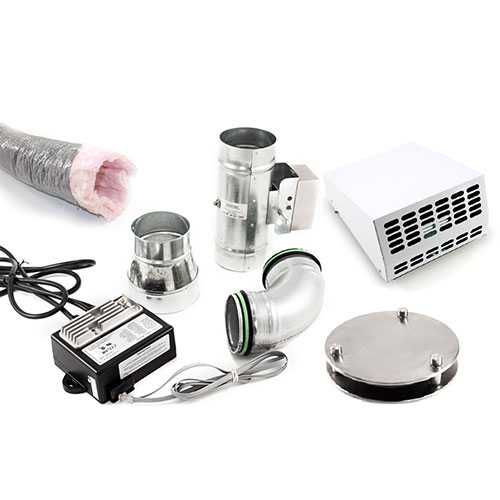

- Exterior roof/wall fan, 116 CFM (option)
- Duct reducer collar, 5" to 4" diameter (with roof fan only)
- Duct extension collar, 4" diameter (with wall fan only)
- Motorized damper, 4"
- Stainless Steel grille
- Elbow, 90°, gasketed, 4"
- Power supply, 120VAC
- Fan switch
- Switch cable with coupler, 25'
- Flex duct, 4"x 25' (25' is maximum length)
- RTV silicone sealant, .5 ounce tube
- Mastic, 11 ounce cartridge
- Two NEMA Male plug, 6'
- Two Strain relief bushings
- Three duct reducer/extension collar screws
- Three damper screws
- Two power supply mounting screws, 1"
- Two mounting screw anchors
- Four fan mounting screws, 1-1/2"
- Four fan mounting screw anchors
- Two duct ties, 18"
- Two duct ties, 36"
- Manufacturer's warranty
- Installation manual
Model | Atmospheric 410 |
---|
Wall Fan (option) | |
---|---|
Type | Exterior, Wall, 4" Duct Connection |
Duct Connection | 4" Diameter |
Duct Extension | Aluminum, 12" Length |
Dimensions | 10-1/2"W x 13"H x 6"D |
Housing Composition | Galvanized Steel, 20 Gauge |
Housing Finish | Baked Powder-Coat Finish, White |
Air Volume | 124 CFM |
AC Voltage | 120V AC |
Power Consumption | 19W |
Nominal Amperage | 0.17A |
Lubrication | Permanently Lubricated, Sealed Ball Bearings |
Protection | Thermal Overload, Automatic Reset |
Speed Control | 20-100% |
Airstream Tolerance | 34°-140°F |
Weight | 8 lbs |
"Rough-In" Cut-Out | 4-3/8" Diameter |
Testing | CSA Listed, UL Listed, Energy Star Rated |
Roof/Wall Fan (option) | |
---|---|
Type | Exterior, Roof/Wall, 5" Duct Reducer Connection |
Duct Reducer Collar | Galvanized Steel, 22 Gauge, 6" Length, 5" to 4" Diameter |
Duct Connection | 4" Duct |
Dimensions | 10-15/16" Diameter x 6"H |
Base Plate Dimensions | 15-1/2"W x 15-1/2"L |
Housing Composition | Galvanized Steel, 22 Gauge |
Housing Finish | Baked Powder-Coat Finish, Gray |
Air Volume | 116 CFM |
AC Voltage | 120V AC |
Power Consumption | 19W |
Nominal Amperage | 0.18A |
Lubrication | Permanently Lubricated, Sealed Ball Bearings |
Protection | Thermal Overload, Automatic Reset |
Speed Control | 20-100% |
Airstream Tolerance | 34°-140°F |
Weight | 11 lbs |
"Rough-In" Cut-Out | 5-3/8" Diameter |
Testing | U.L. Listed; CSA Listed |
Damper | |
---|---|
Type | Motorized, Positive Close, Spring-Tensioned |
Dimensions | 7-3/4"W x 10"L x 5"H |
Body Composition | Galvanized Steel, 28 Gauge |
Blade Composition | Galvanized Steel, 22 Gauge |
Seal Composition | Vinyl Foam, Low Density |
AC Voltage | 120V AC |
Motor | High Torque |
Endurance Test | 100,000 cycles |
Grille | |
---|---|
Type | Decorative, 4" Duct Connection |
Dimensions | 6" Diameter, 1-1/2" Profile |
Composition | 304 Stainless Steel |
Finish | #4 Sanitary |
"Rough-In" Cut-Out | 4-1/4" Diameter |
Elbow | |
---|---|
Type | 90°, Stamp/Stitch Welded, Flangeless, Dual-Gasketed |
Composition | Galvanized Steel, 22 Gauge |
Gasketing | EPDM Rubber, Dual - Wiper & Hollow |
Wiper Gasket | ASTM D2000-86 M3BA 810 B13 C12 F17, Black |
Hollow Gasket | ASTM D2000-86 M8BA 507 B13 C12, Green |
Gasket Operating Temperature | -20°F to 140°F |
Duct | |
---|---|
Type | Insulated, Reinforced, Flex, Three-Ply |
Interior DImensions | 4” Diameter x 25’ Length |
Exterior Dimensions | 6" Diameter x 25' Length |
Interior Ply Composition | Dual Lamination Polyester with Encapsulated Wire Helix |
Middle Ply Composition | Fiberglass |
Exterior Ply Composition | Polyester, Tri-Directional Fiberglass Scrim Reinforced, Gray |
R-Value | 4.2 |
Operating Temperature | -20°F to 140°F |
Testing | UL-181 |
Duct Tie | |
---|---|
Composition | Nylon, Natural |
Operating Temperatures | Max 185°F |
Tensile strength | 175 lbs |
Testing | UL 181-B-C Approved |
Mastic | |
---|---|
Type | Duct Sealant, Water Based, UV Resistant |
Composition | Liquid, Gray, 1/12-Gallon |
Use | Indoor / Outdoor |
Testing | UL 181B, USDA, FDA, EPA approved |
Fan Switch | |
---|---|
Type | Flush-Mounted, In-Shower |
Voltage | 5VDC |
Diameter | 2-1/32” |
Trim Depth | 3/16” |
Trim Finish | Polished Chrome or Brushed Nickel |
Body Diameter | 1-17/32” |
Body Depth | 1-5/16” |
"Rough-In" Cut-Out | 1-1/2” Diameter |
Time Crcuit | 20-Minute Off Delay |
Wall Material Thickness | 2-1/2” |
Power Supply | |
---|---|
Operating Voltage | 120V AC |
Nominal Amperage | 15 AMPS |
Length | 7-7/8" |
Width | 7-1/2" |
Height | 3-1/4" |
Testing | CSA, Type 2 |
