Mr.Steam C2000
CU Series 48kW Steam Shower Generator Package w/CU2000
The Mr.Steam C2000 Commercial Steam Shower Generator Package is engineered for around-the-clock use in the most demanding health club steam rooms, making it suitable for one or two steam rooms measuring up to 2000 cubic feet (CF). This high-efficiency and low maintenance generator package combines a 48kW CU Generator, Digital 1 Control, CU Steamhead, Automatic Blowdown System, Solenoid Valve, and Auxiliary Manual Reset.
See Shipping Tab
The high-performance, low-maintenance C2000 features a durable stainless-steel outer casing. The unit is vertically built to fit compact mechanical rooms and is designed for easy installation and maintenance.
The C2000 generator includes a National Board recognized carbon steel pressure vessel wrapped in insulation and a 48kW stainless-steel heating element. CU Series generators are pre-tested and delivered factory-wired to ensure that each unit is working perfectly.
Health clubs, hotels, resorts, and other large commercial facilities rely on the MrSteam C2000 steam room boiler for safe, dependable, and continuous operation. The C2000 is UL-listed, ASME-certified and CSA-certified to ensure safety and quality.
The C2000 comes with the digital 1 control package which maintains pre-set steam room temperatures. The package includes a digital 1 control, two steam solenoid valves, two AromaSteam steam heads, and an automatic blowdown system.
The included automatic blowdown system performs daily cleaning of the generator tank to prevent sediment buildup. Additionally, we recommend an effective water treatment system to ensure optimal performance and longevity of the unit.
The unit features a pressure gauge and sight glass which allows facility operators to view operating information at a glance. The C2000 includes an auxiliary manual reset, low-water cutoff for added safety.
The Mr. Steam C2000 generator is available in 208V, 240V, and 480V three-phase (3-PH) configurations.
All CU Series units are designed, engineered, and constructed in the USA.
NOTE: The Mr. Steam C2000 replaces the discontinued Mr. Steam CU2000 generator.
C2000 Club Generator
- Sight glass
- Standard with full 1" drain port
- Stainless steel jacket
- Compact vertical design
- Durable electronic components
- Features National Board registered pressure vessel
- Use high quality fibrous glass pressure vessel insulation for maximum energy performance
- Features stainless steel heating elements for corrosion resistance with ASME grade flanges for longevity and reliable performance
- Steam-rated operating and high limit pressure controls for Steam-On-Demand
- Pressure gauge and sight glass to provide operating information at a glance
- Easy installation and service accessibility
- Meet ASME requirements and UL/CSA nationally recognized testing standards

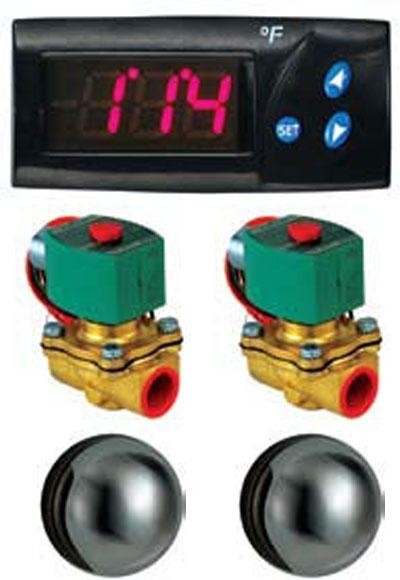

Digital 1 Control
- Steam room temperature regulating sensor
- Advanced low-mass, quick response thermistor with sensor guard
- Durable and capable of responding to steam room temperature within tight tolerances
- Electronic temperature control factory pre-installed with panel mount design supplied with a plate for optional remote installation in a standard 4X4 electrical box
- Allows owner/operator to set room temperature accurately and reliably
- Providing efficient, consistent control with full 100˚ F - 120˚ F range
- Integrated in-steam room high temperature control provides an additional level of reliability
Steam Solenoid Valves (2)
- All brass construction with stainless steel trim, sized to match steamhead distribution
- Steam-rated seat for high reliability and quick response steam delivery
Aromasteam Steamheads (2)
- All brass construction with polished chrome finish
- Full 3/4 inch NPT size for quiet, controlled steam delivery
- Supplied with full coverage polycarbonate cover
- Engineered to operate seamlessly with Mr. Steam's AromaFlo aromatic oil delivery system

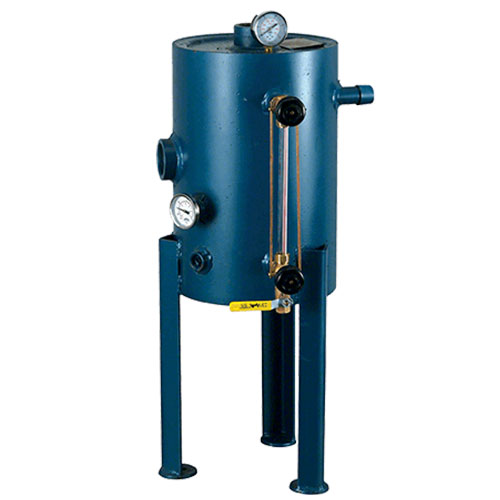

Automatic Blowdown System
- System programmed daily discharge of accumulated sediment
- Digital Timer provides 24/7 startup/shutdown and AutoFlush operation

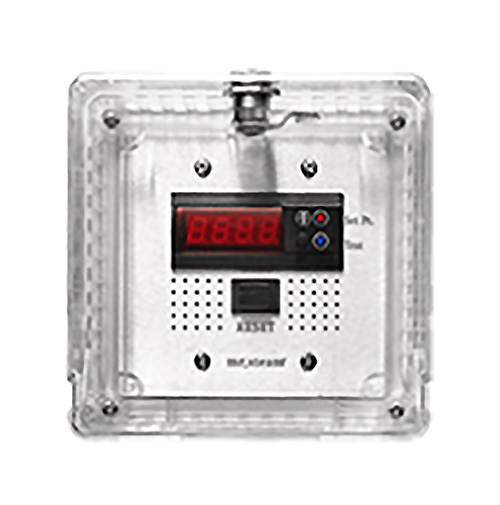

Auxiliary Manual Reset
- Independent manual reset
- Backup low water cutoff control
- Steam bath generator 33"L x 24"W x 44"H
- Installation and operation manual
- Limited warranty
Model | C2000 |
---|---|
Minimum Cubic Feet | 1401 CF |
Maximum Cubic Feet | 2000 CF |
Kilowatt Rating | 48KW |
Shipping Weight | 350 lbs |
Water Supply Connection | 1/2" NPT |
Generator Steam Line Connection | 1" NPT |
Steam Head Connection | 3/4" NPT |
Drain Connection | 1" NPT |
Safety Relief Valve Connection | 3/4" NPT |
Safety Relief Valve PSIG | 15 PSIG |
Control "Rough In" Cut Out | 3-1/2" x 3-1/2" |
Control Sensor Cable | 30' 5", 25', 2 Conductor, 24 AWG, Shielded Cable |
Control Sensor "Rough In" Cut Out | 3/8" Diameter |
Generator Control Connection | 6 Position Terminal Block |
Generator Control Cable | 6" Long, 4 Conductors, 16 AWG |
Width | 24" |
Depth | 33" |
Height | 44" |
