Mr.Steam C3000
CU Series 72kW Steam Shower Generator Package w/CU3000
The Mr.Steam C3000 Commercial Steam Shower Generator Package is engineered for around-the-clock use in the most demanding health club steam rooms, making it suitable for one or two steam rooms measuring up to 3000 cubic feet (CF). This high-efficiency and low maintenance generator package combines a 72kW CU Generator, Digital 1 Control, CU Steamhead, Automatic Blowdown System, Solenoid Valve, and Auxiliary Manual Reset.
See Shipping Tab
The C3000 is constructed of durable and corrosion-resistant stainless-steel casing. The unit is vertically built to fit narrow mechanical rooms for easy installation and accessibility.
The unit includes a National Board recognized pressure vessel wrapped in insulation and a 72-kilowatt stainless-steel heating element. All CU Series generators are wired and pre-tested before shipping to assure that each unit is working perfectly. CU Series generators are UL-listed, ASME-certified, and CSA-certified to ensure safety and quality.
Health clubs, day spas, hotels, and other commercial wellness facilities rely on the C3000 steam room boiler for dependable and reliable daily operation. The unit comes with a pressure gauge and sight glass which allows facility operators to view operation information at a glance. The unit is equipped with an auxiliary manual reset, low-water cutoff for added safety.
The C3000 generator includes an Automatic Blowdown System which performs daily cleansing of the generator tank to prevent sediment buildup. Additionally, we recommend an effective water treatment system to help ensure optimal performance and longevity of the unit.
The unit requires the use of the included Digital 1 control package for operation which allows facility operators to pre-set steam room temperatures. The digital 1 control package comes with a digital 1 control, two AromaSteam steam heads, and two steam solenoids.
The Mr. Steam C3000 generator is available in 208V, 240V, and 480V three-phase (3-PH) configurations.
All Mr. Steam CU Series generators are designed, engineered, and constructed in the USA.
C3000 Club Generator
- Sight glass
- Standard with full 1" drain port
- Stainless steel jacket
- Compact vertical design
- Durable electronic components
- Features National Board registered pressure vessel
- Use high quality fibrous glass pressure vessel insulation for maximum energy performance
- Features stainless steel heating elements for corrosion resistance with ASME grade flanges for longevity and reliable performance
- Steam-rated operating and high limit pressure controls for Steam-On-Demand
- Pressure gauge and sight glass to provide operating information at a glance
- Easy installation and service accessibility
- Meet ASME requirements and UL/CSA nationally recognized testing standards
Digital 1 Control
- Steam room temperature regulating sensor
- Advanced low-mass, quick response thermistor with sensor guard
- Durable and capable of responding to steam room temperature within tight tolerances
- Electronic temperature control factory pre-installed with panel mount design supplied with a plate for optional remote installation in a standard 4X4 electrical box
- Allows owner/operator to set room temperature accurately and reliably
- Providing efficient, consistent control with full 100˚ F - 120˚ F range
- Integrated in-steam room high temperature control provides an additional level of reliability
Steam Solenoid Valves (2)
- All brass construction with stainless steel trim, sized to match steamhead distribution
- Steam-rated seat for high reliability and quick response steam delivery
Aromasteam Steamheads (2)
- All brass construction with polished chrome finish
- Full 3/4 inch NPT size for quiet, controlled steam delivery
- Supplied with full coverage polycarbonate cover
- Engineered to operate seamlessly with Mr. Steam's AromaFlo aromatic oil delivery system
Automatic Blowdown System
- System programmed daily discharge of accumulated sediment
- Digital Timer provides 24/7 startup/shutdown and AutoFlush operation
Auxiliary Manual Reset
- Independent manual reset
- Backup low water cutoff control
- Steam bath generator 33"L x 24"W x 44"H
- Installation and operation manual
- Limited warranty
| Model | C3000 |
|---|---|
| Minimum Cubic Feet | 2501 CF |
| Maximum Cubic Feet | 3000 CF |
| Kilowatt Rating | 72 KW |
| Shipping Weight | 400 lbs |
| Water Supply Connection | 1/2" NPT |
| Generator Steam Line Connection | 1" NPT |
| Steam Head Connection | 3/4" NPT |
| Drain Connection | 1" NPT |
| Safety Relief Valve Connection | 3/4" NPT |
| Safety Relief Valve PSIG | 15 PSIG |
| Control "Rough In" Cut Out | 3-1/2" x 3-1/2" |
| Control Sensor Cable | 30' 5", 25', 2 Conductor, 24 AWG, Shielded Cable |
| Control Sensor "Rough In" Cut Out | 3/8" Diameter |
| Generator Control Connection | 6 Position Terminal Block |
| Generator Control Cable | 6" Long, 4 Conductors, 16 AWG |
| Width | 24" |
| Depth | 33" |
| Height | 44" |
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
Our goal is to ensure your project success.
The step-down transformer is used to supply the 120V control circuit.
The step-down transformer is used to supply the 120V control circuit.
This CU SteamStop emergency stop switch electronically shuts down the steam generator and initiates the Digital 1 internal alarm and the CU Alarm, if installed.
This audible alarm sounds in the event the steam room maximum set temperature is exceeded or the CU SteamStop switch is pressed.
High temperature limit device for use with any Mr.Steam CT or CU steam generator system to provide temperature shutoff and alarm functions.
The Mr.Steam LEDLITE was designed with precise attention to detail and crafted with aluminum bezels for durability. You won't need to worry about temperature levels or moisture with this low-voltage LED recessed light. The dimmable feature matched with an impressive 600 lumens gives you the ability to have your lighting match your mood.
With the Mr. Steam CU2-Digital 1 control package, club and spa operators can set the desired steam room temperature and the boiler makes it happen. The boiler-mounted CU2-Digital 1 control includes an Operating Control with a sensor guard, two ¾” Steam Solenoid Valves, two ¾” Steam Heads and operates with the Mr. Steam CU2000-CU45000 steam room boilers.
This 30-Minute Mechanical Count-Down Timer w/Steam Vent works in conjunction with Digital 1 Control Package.
The optional Mr.Steam CU-BDT-ASME36 Blowdown Tank meets ASME code and is designed to safely augment the blowdown process.

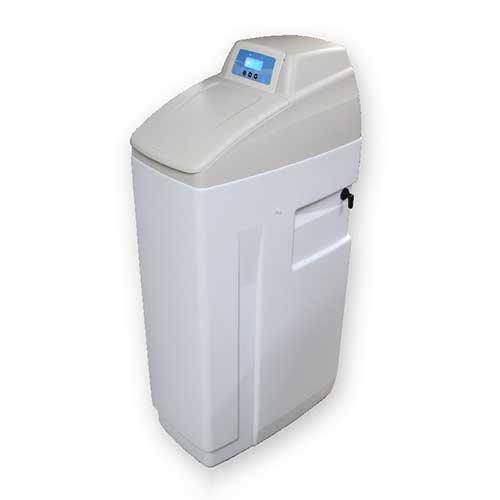

Bathology ScaleOut 430 reduces the negative effects of scale build-up. You can expect less generator downtime, extended heating element life, simplified preventative maintenance and a reduction in utility costs.
